Precision HVAC Engineering: Cooling Load Calculation & Chiller System Design

When the ambient temperature hits 50°C, “standard” HVAC design isn’t enough—it’s a liability. At Fluxiss, we bridge the gap between complex thermal dynamics and operational reality. We specialize in high-capacity cooling systems for industrial complexes and commercial hubs that cannot afford a single degree of fluctuation.

Our approach isn’t just about picking a unit from a catalog. We use Carrier HAP (Hourly Analysis Program) to simulate every hour of the year, ensuring your facility remains pressurized, cooled, and efficient under the harshest solar loads on the planet.

Case Study: Cooling the Royal Petrochemical Complex

The Challenge: Beating the Jubail Industrial Heat

Designing a cooling system for a massive facility in Jubail, Saudi Arabia, presents a unique set of engineering hurdles. The extreme Gulf environment involves intense solar radiation and high humidity, which can easily overwhelm standard systems.

The primary difficulty was the Internal Heat Gain management. Between massive industrial machinery and specific building orientations, the thermal load was non-linear. We had to account for specific partition details to ensure that different zones—from sensitive control rooms to high-traffic processing areas—maintained exact temperature setpoints without wasting energy.

The Solution: Data-Driven Chiller Infrastructure

We moved away from guesswork and utilized Carrier HAP for a granular cooling load analysis. By inputting exact building materials, glass types, and occupancy schedules, we generated a 3D thermal model of the complex.

• Zoning & Partitions: We calculated specific loads for individual zones to prevent “over-cooling” vacant areas while protecting critical infrastructure.

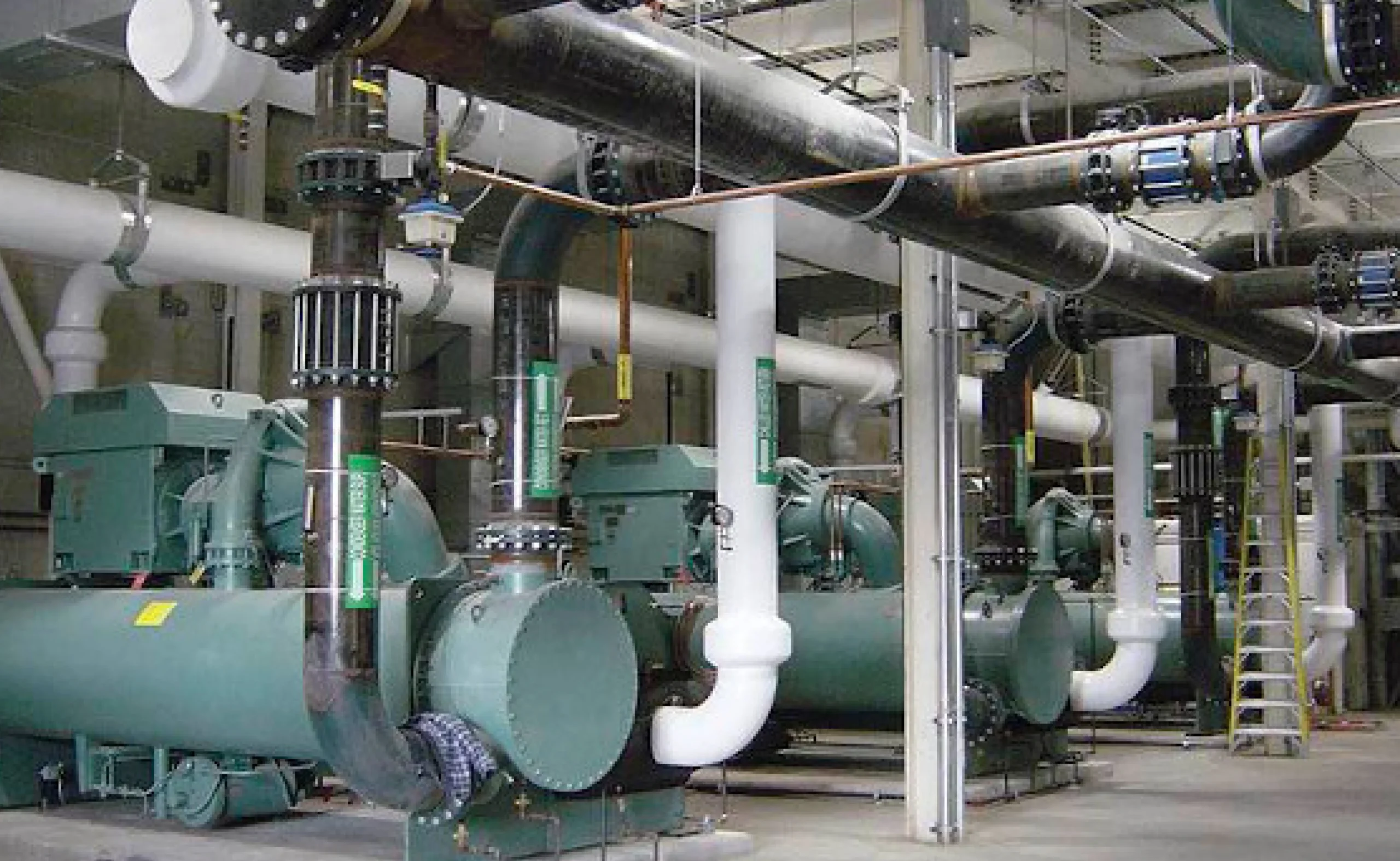

• Central Chiller Plant Design: Fluxiss specified a high-capacity central cooling plant, including the exact tonnage, piping layouts, and pumping arrangements required to move chilled water across the massive site.
• System Optimization: We didn’t just design for peak heat; we designed for part-load efficiency, ensuring the pumps and chillers scale down during cooler night cycles to save on operational costs.

The Outcome: Maximum Tonnage, Minimum Waste

The result was a robust, procurement-ready design package. We delivered comprehensive Cooling Load Data (Tons of Refrigeration) and detailed equipment schedules that met the facility’s massive demand.

By aligning our specifications with the highest energy efficiency standards, the Royal Petrochemical Complex achieved a system that is both environmentally conscious and technically resilient. The facility now operates with precise climate control, ensuring zero downtime due to thermal stress on equipment or personnel.

Why Fluxiss for Your Next Industrial Cooling Project?

We understand that in the industrial sector, cooling is a utility as vital as electricity. Our team focuses on every detail by providing transparent, data-backed engineering reports. Whether you are building in the US or an extreme climate overseas, we ensure your HVAC investment is sized correctly from day one.

Ready to optimize your facility’s thermal performance?

Consult with Our Engineers
