Industrial piping systems are living, breathing entities. When a pump discharge system heats up, the metal expands—and that energy has to go somewhere. If it isn’t managed correctly, that force travels straight into your pump nozzles, leading to misalignments, cracked casings, or catastrophic seal failures.

At Fluxiss, we don’t just “support” pipes; we engineer movement. Our recent work on Spring Support Design for Pump Discharge systems highlights how precision stress analysis keeps high-stakes operations running without a hitch.

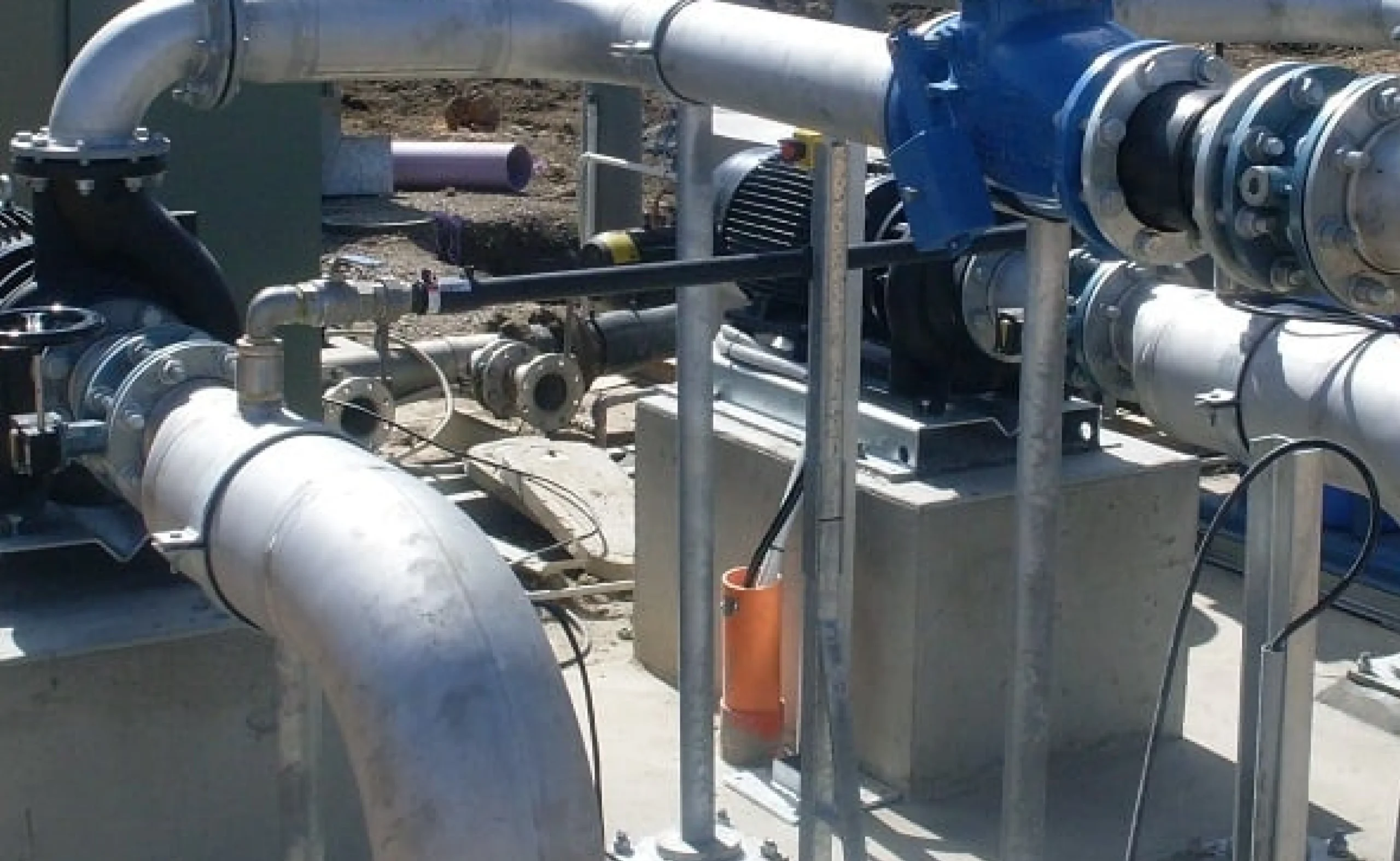

Precision Spring Support Design for Pump Discharge

The Problem: When Thermal Expansion Threatens Your Hardware

In high-temperature pumping environments, rigid supports are a liability. The main challenge we faced was a discharge piping system that exerted massive force on the pump during thermal cycles. Standard fixed supports would have pushed the nozzle loads far beyond the safe operating window, risking equipment downtime and expensive repairs.

We had to find the “sweet spot”—a support system that was firm enough to handle the weight of the fluid-filled pipe but flexible enough to move as the temperature climbed.

The Fluxiss Approach: Stress Analysis Meets API 610 Compliance

We didn’t guess; we calculated. Our engineers performed a detailed stress analysis to map out vertical and horizontal displacements. Using this data, we:

• Modeled Thermal Expansion: We simulated exactly how the pipe would grow under operating conditions.
• Engineered Spring Configurations: We selected specific spring rates to balance the piping weight while allowing for movement.
• Ensured API 610 Adherence: Every calculation was double-checked to ensure nozzle loads stayed strictly within the allowable limits defined by API 610.
• Vibration Mitigation: By optimizing the spring placement, we dampened system vibrations that often lead to long-term fatigue.

The Result: Zero-Stress Infrastructure

By coordinating directly with the client and sourcing components from Tier-1 suppliers, we delivered a “plug-and-play” solution. The final design successfully minimized nozzle loadings and gave the piping the room it needed to breathe. The client received a comprehensive stress analysis report, ensuring their facility remains compliant with US industrial safety and engineering standards.

Why Fluxiss for Your Piping Stress Analysis?

Engineering isn’t just about the math; it’s about the longevity of your assets. We focus on each detail by backing every design with verified data and industry-standard compliance. Whether you are dealing with cryogenic temperatures or high-pressure steam, we ensure your pumps stay protected.
