At Fluxiss, we don’t just draw pipes; we solve the physics problems that keep industrial plants from failing. Piping systems in the US—whether they are carrying thermal oil or feeding a city-wide heat network—face massive physical strain. Our job is to use CAESAR II software to simulate these stresses before they turn into real-world leaks or ruptures.

Here is how we’ve helped clients manage extreme heat and complex networks.

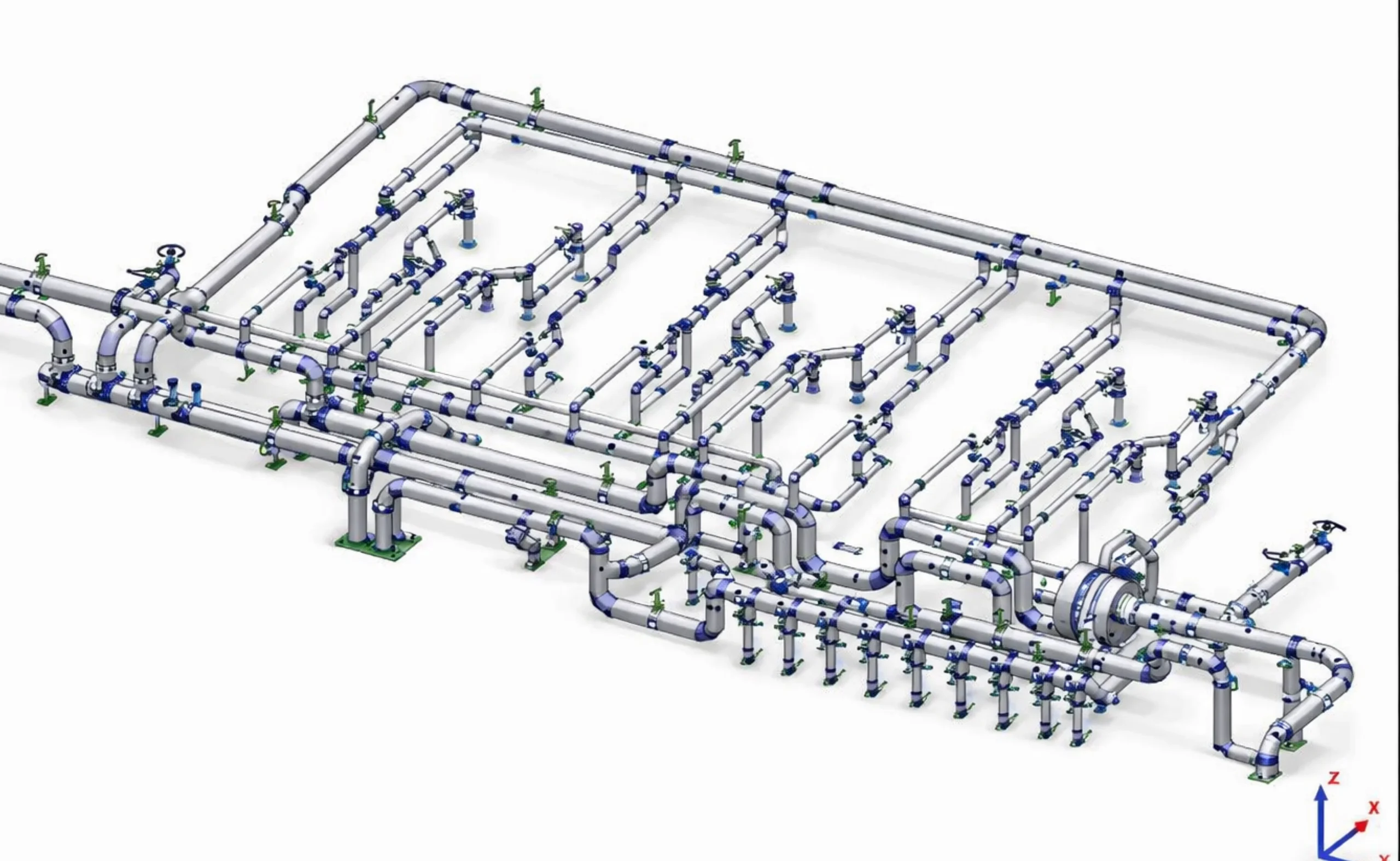

Thermal Oil Pipe Systems: Taming 360°C Heat

The Challenge: Stopping Thermal Expansion from Tearing Flanges Apart

When a system runs at 360°C (680°F), the metal doesn’t just get hot; it moves. In this project, the extreme temperature created a massive risk of overstressing the pipe walls and causing flange leakage. Even a tiny gap in a thermal oil system is a fire hazard. We needed to ensure that every joint could handle the expansion without losing its seal.

The Fluxiss Solution: CAESAR II Stress Analysis & Flange Checks

We ran a rigorous stress analysis to map out exactly where the heat would cause the most movement. Our team:

• Performed detailed stress modeling to identify high-pressure points.
• Conducted flange leakage checks on every critical component to verify seal integrity under peak heat.
• Adjusted support placements to allow the system to “breathe” without compromising safety.

The Result: A Leak-Proof, High-Temperature System

The outcome was a system that maintains total integrity under extreme thermal loads. By mitigating the risks of overstress and leaks, we provided the client with a safe, operational facility that meets all US safety codes.

Water Heat Networks: Smart Expansion Strategies

The Challenge: Plant Room Constraints and Tight Budgets

Large-scale water heat networks involve massive mechanical and gas piping systems. Usually, engineers throw expensive expansion joints at the problem. However, our client needed a way to manage expansion in tight plant rooms without the high cost and maintenance of mechanical joints.

The Fluxiss Solution: Using Natural Flexibility

Instead of adding hardware, we used math. We analyzed the mechanical and gas piping to develop an expansion strategy based on “natural flexibility.” By slightly altering the pipe routing—using the natural bends and loops of the system—we allowed the pipes to absorb their own movement.

The Result: Lower Costs and Higher Reliability

We achieved the necessary flexibility with minimal design changes. This saved the client significant money on materials and long-term maintenance. The final network is more reliable and built to last longer because it relies on the pipe’s own geometry rather than wearable mechanical parts.

Why Choose Fluxiss for Your Piping Analysis?

We bring precision to every project. By utilizing industry-leading software like CAESAR II, we ensure your infrastructure is optimized for performance and safety. We don’t just find problems; we engineer the most cost-effective way to fix them.
