When dealing with high-energy piping, there is zero margin for error. At Fluxiss, we provide specialized ASME B31.1 Power Piping Stress Analysis and NEMA SM-23 compliance services. Whether your facility is in Houston or operating internationally, our engineering team ensures your critical systems handle thermal expansion, pressure surges, and nozzle loads without risking catastrophic failure.

Below is a breakdown of a recent high-stakes project where we validated the integrity of a turbine piping network.

The Project: Turbine Inlet & Outlet Network Validation

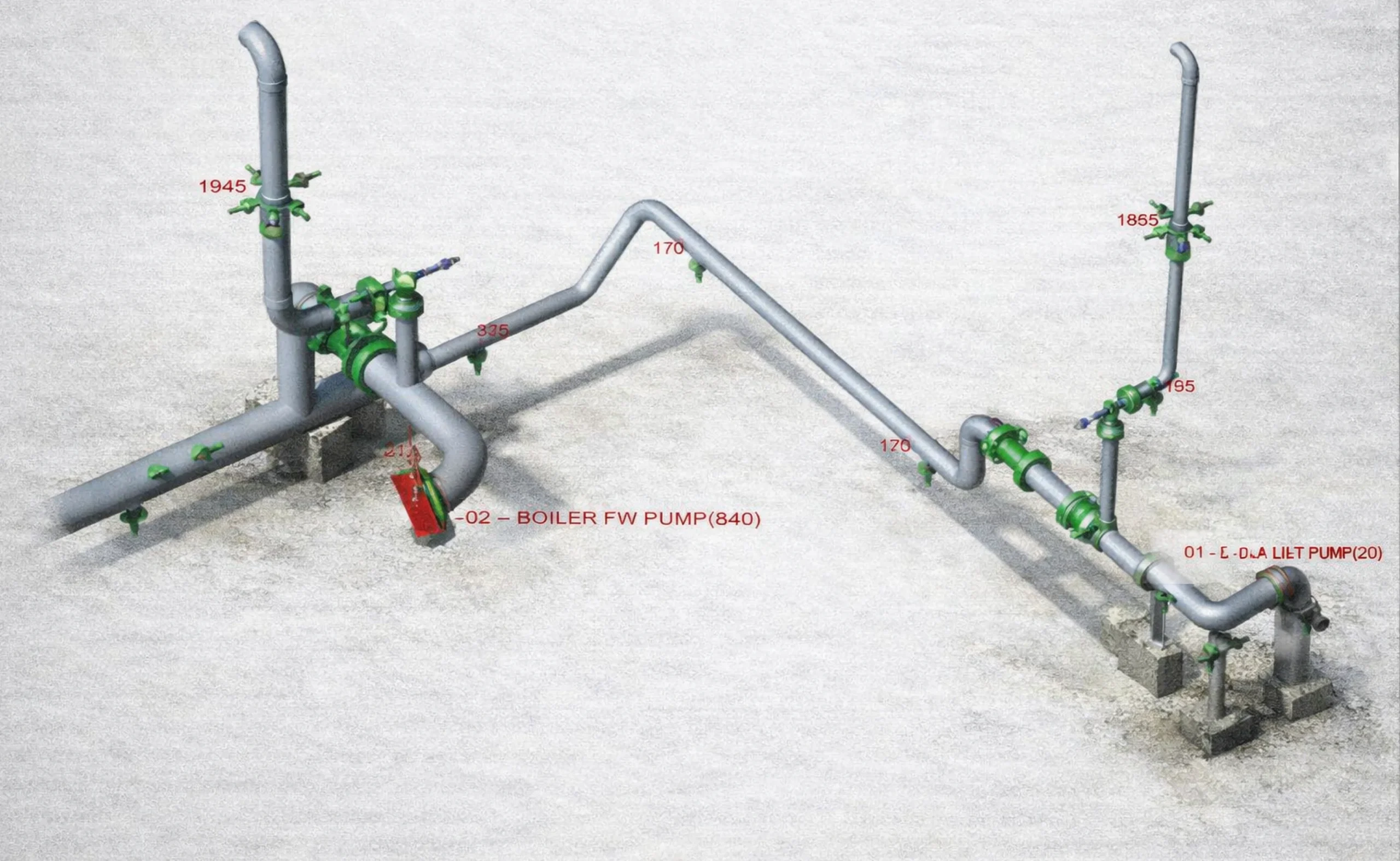

For a major energy provider in Houston, USA, Fluxiss was tasked with the comprehensive stress validation of a turbine’s critical piping infrastructure. This wasn’t just a standard check; it involved a complex web of interconnected high-temperature lines that required precise modeling to meet strict industry codes.

The Challenge: Managing Reaction Forces and Tight Tolerances

High-energy systems present unique hurdles that standard piping runs don’t encounter. In this project, we faced three primary difficulties:

• PSV Reaction Forces: The system included a complex relief network. We had to calculate the massive thrust forces generated during a Pressure Safety Valve (PSV) discharge to prevent pipe support failure.
• Equipment Sensitivity: We had to interface the piping with pumps and Fin Fan Coolers, which have very low allowable load limits.
• NEMA SM-23 Standards: The most difficult aspect was ensuring the turbine nozzles were not overloaded. Turbines are sensitive; even a few millimeters of thermal growth can cause misalignment or internal damage.

The Result: A Code-Compliant, Operational System

Using CAESAR II and AutoPIPE, our engineers simulated every possible load case, from startup to emergency shutdown.

• Validated Integrity: We delivered comprehensive calculation sheets confirming compliance with ASME B31.1.
• Nozzle Load Success: By strategically placing supports and loops, we kept all loads within NEMA SM-23 limits.
• Optimized Support Design: Our analysis allowed the client to install a support system that manages thermal expansion effectively, extending the lifespan of the turbine and peripheral pumps.

Why Fluxiss for Your Power Piping Needs?

Piping stress analysis is more than just running software; it’s about understanding the physics of a moving system. Fluxiss combine deep code knowledge with practical field experience.

• Software Accuracy: We utilize industry-standard tools like CAESAR II to provide audit-ready documentation.
• Global Standards: While based in the US, our workflows align with international safety requirements for the power generation sector.
• End-to-End Support: From initial modeling to final calculation sheets, we ensure your project moves from design to commissioning without technical delays.

Ready to secure your high-energy system?
Book a Technical Consultation with Fluxiss
